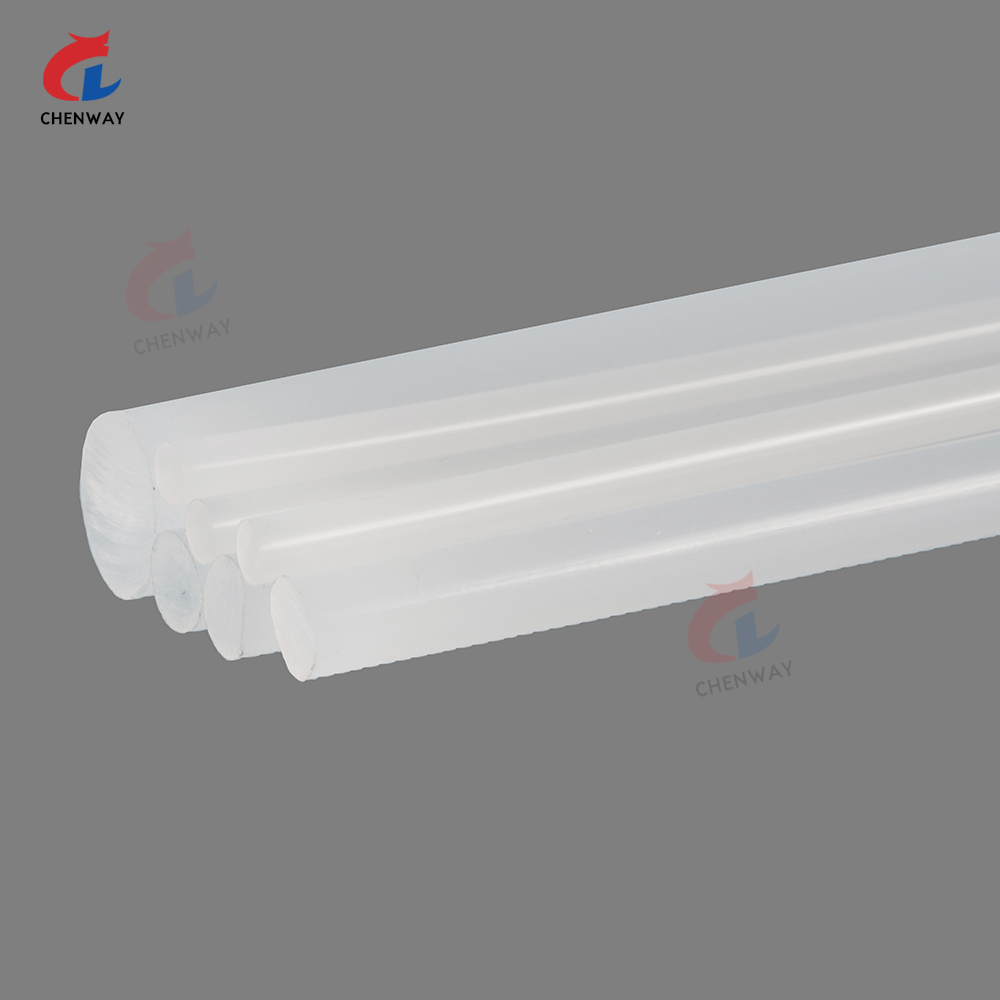

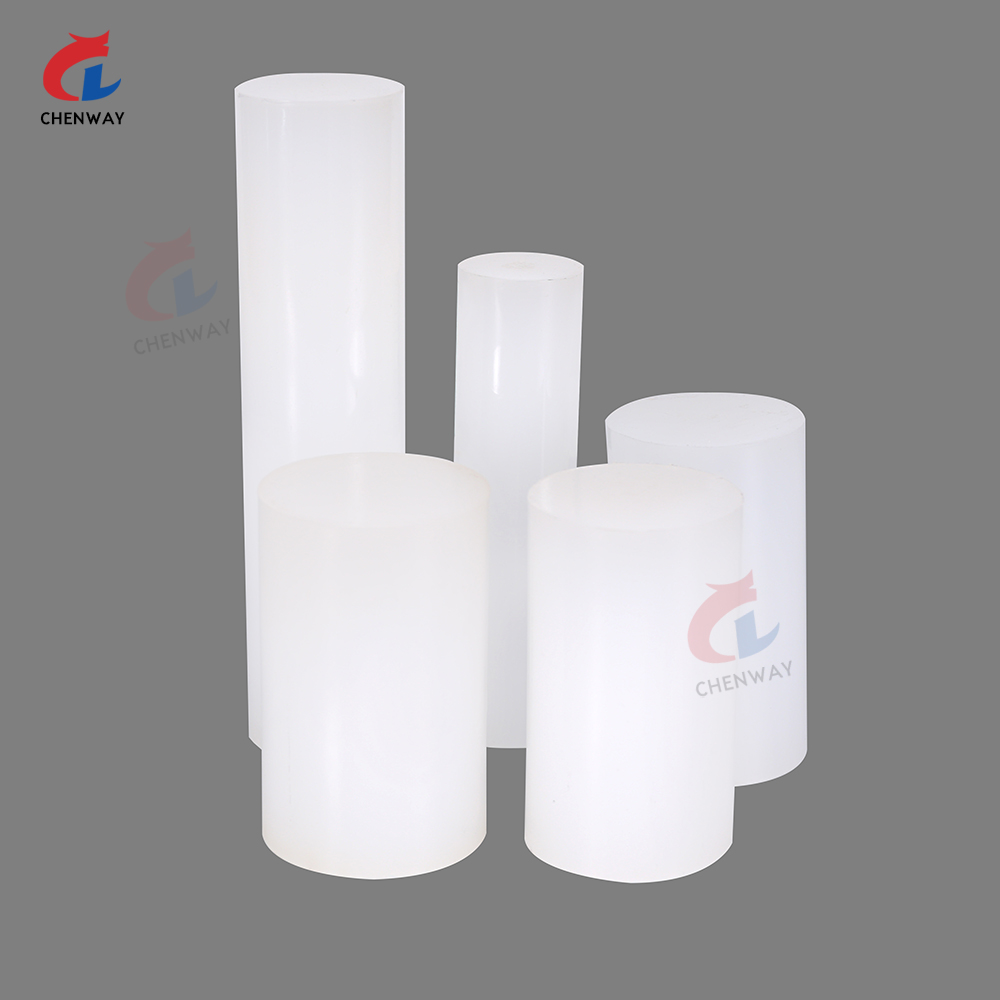

PCTFE stick

PCTFE (polychlorotrifluoroethylene) is a high-performance fluoroplastic. Its molecular chain contains fluorine and chlorine atoms simultaneously, which combines the corrosion resistance of fluoroplastics with the polar properties of chlorine atoms, giving it excellent complex characteristics. PCTFE is widely used in high-tech fields such as aerospace, low-temperature sealing, semiconductors, chemical fluids, medical devices and others.
Request a quote

Description

Product Characteristics

  • Exceptional low temperature properties: maintains good mechanical strength at extreme low temperatures, suitable for ultra-low temperature environments such as liquid nitrogen, liquid oxygen, etc.
  • Excellent chemical resistance: highly resistant to strong acids (e.g. concentrated sulfuric acid, nitric acid), strong alkalis, organic solvents and oxides.
  • High mechanical strength and dimensional stability: hardness and compression resistance are superior to those of PTFE (polytetrafluoroethylene), and cold flow and creep resistance are also outstanding, making it suitable for the manufacture of high-precision mechanical parts.
  • Excellent gas tightness: extremely low permeability to water vapor, is one of the materials with the best barrier properties among transparent plastic films, suitable for high vacuum sealing and moisture resistant packaging.
  • Good electrical insulating properties: PCTFE has excellent dielectric characteristics, being a good insulating material in electrical and electronic applications.
  • Resistant to radiation and atmospheric conditions: can be operated under UV and nuclear radiation conditions for long periods of time without noticeable degradation of properties, suitable for nuclear industry and open air applications.
  • Transparency: transparency and UV resistance make PCTFE suitable for optical applications including lenses and windows requiring durability and transparency.

Parameters

Table of PCTFE stick sizes

Serial number Name Specification Recommended weight (kg/meter)
1 PCTFE stick Φ4*1000 0.04
2 PCTFE stick Φ5*1000 0.05
3 PCTFE stick Φ6*1000 0.08
4 PCTFE stick Φ8*1000 0.13
5 PCTFE stick Φ10*1000 0.18
6 PCTFE stick Φ12*1000 0.26
7 PCTFE stick Φ13*1000 0.31
8 PCTFE stick Φ13.5*1000 0.33
9 PCTFE stick Φ15*1000 0.41
10 PCTFE stick Φ16*1000 0.46
11 PCTFE stick Φ18*1000 0.59
12 PCTFE stick Φ20*1000 0.71
13 PCTFE stick Φ22*1000 0.87
14 PCTFE stick Φ25*1000 1.11
15 PCTFE stick Φ28*1000 1.4
16 PCTFE stick Φ30*1000 1.6
17 PCTFE stick Φ32*1000 1.83
18 PCTFE stick Φ35*1000 2.19
19 PCTFE stick Φ38*1000 2.58
20 PCTFE stick Φ40*1000 2.86
21 PCTFE stick Φ45*1000 3.63
22 PCTFE stick Φ50*1000 4.48
